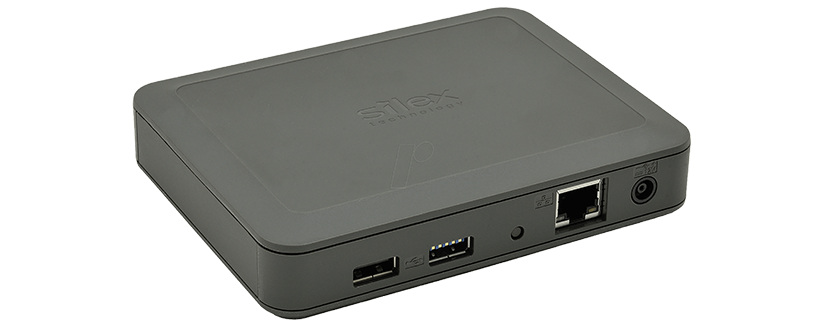

Silex DS600

Video   PDF

Description

More and more USB devices, such as scanners, MFPs, hard disks or RDX-systems and cameras, have been used in offices. The USB Device Server allows you to use devices on a network, improving installation flexibility without troublesome USB cables. As this enables USB devices to be easily shared, you can optimize use of USB devices in the office, reducing installation costs.

Specification

DS600
  • Wired LAN: 10BASE-T, 100BASE-TX, 1000BASE-T (Auto Recognition)
  • Device interface: 1 x USB 3.0 SUPERSPEED (Type A) and 1 x USB 2.0 Hi-Speed (type A)
  • Operating system supported:
  • Windows 10 (32/64bit), Windows 8/8.1 (32/64bit), Windows 7 (32/64bit), Windows Server 2012R2, Windows Server 2012, Windows Server 2008R2, Windows Server 2008 (32/64bit)
  • Protocol supported: TCP/IP
  • Configuration:  Setup utility (Device Server Setup), Web browser
  • Dimensions: W: 130mm x D: 100mm x H: 26.2mm (body only)
  • Weight: 145g (Without Accessories)
  • Power supply:  AC adapter AC100V 50/60Hz
  • Maximum power consumption: 4.8W (DC12V 0.4A) not including USB bus power
  • Regulatory compliance: VCCI Class B / FCC Class B / CE Class B
  • Maximum number of connections: 15
