Description
The Portable Monitor 150BW weighs just 715g, achieving exceptional portability of an ultra-lightweight secondary screen that is easy to carry, set up, and use in tight spaces or while traveling. The RICOH Portable Monitor 150BW can be exceptionally easily passed to clients or colleagues for a more intensive meeting experience. The high-quality, high-contrast screen delivers vivid images, making displayed content easier to consume, review, and create, while the touchscreen enables users to change ideas and participate in meetings quickly and clearly. It allows users to highlight text and graphics on shared content, directly draw or annotate on the content, facilitating the exchange of feedback and fast, efficient communication of ideas.
The built-in battery allows for up to three hours of uninterrupted operation.
Specification
|

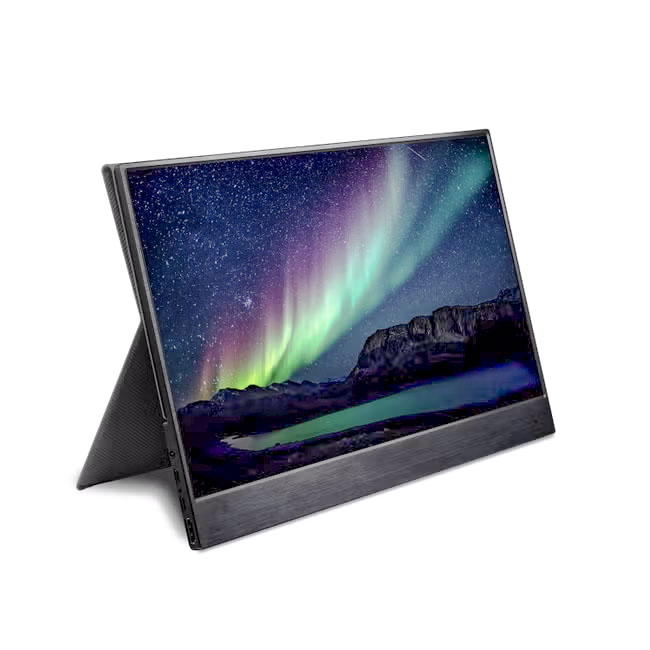

Ricoh Portable Monitor 150BW
|
| Display panel |
Display method |
OLED (Organic Light Emitting Diode) |
| Maximum resolution |
1920 x 1080 |
| Brightness (max) |
300 nit (=cd/m2) |
| Contrast |
1:100,000 |
| Display colours |
8bit+2bit FRC (maximum number of colours: Approx. 1.07 billion colours) |
| Panel size |
15.6 inches |
| Refresh rate |
60Hz |
| Colour gamut |
DCI P3 100% |
| Viewing angle |
85° or higher |
| Response time |
1ms |
| Blue light cut |
Eye Care Display certified |
| Number of simultaneous display units |
Max. 2 units (wireless)
|
| Touch panel |
Protective glass |
Toughened glass, AF (anti-fingerprint) coating |
| Detection method |
Active electrostatic coupling method (AES2.0) |
| 10-point multi-touch |
Wired/ Wireless connection: Supported (Windows®/ Android™) |
| Interfaces |
Back side |
USB Type-C® 2 (External power supply/ DisplayPort™ signal input function supported) |
| Screen wireless communication method, Encryption |
Miracast® WPA2™ PSK |
| Supported wireless LAN standard |
IEEE802.11 b/g/n (2.4 GHz), IEEE802.11 a/n/ac (5 GHz) |
| Audio |
Built-in speaker |
1.5W x 2 |
| Power supply (external) |
Input method |
USB Power Delivery (USB Type-C® powered) |
| Input |
Max. 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A) |
| Output (power pass through) |
Max. 25W (5V/0.9A, 9V/0.77A, 15V/1.66A, 20V/1.25A) |
| ON mode power consumption |
15.5 W or less |
| Standby mode power consumption |
0.2 W or less |
| Internal battery |
Type |
Lithium-ion battery |
| Capacity |
3740mAh |
| Charging time |
Approx. 2.5 hours |
| Operating time (when fully charged) |
Continuous operating time: 3 hours |
| Environment |
Operating temperature |
0~35°C |
| Operating humidity |
10-80% (without condensation) |
| Continuous operating time |
20 hours*8
|
| Weight (main unit only) |
1.58lb (715g)
|
|
Dimensions (main unit only)
W x D x H
|
356.0 x 10.8 x 221.7mm (thinnest part: 4.8mm) |
|
