Description

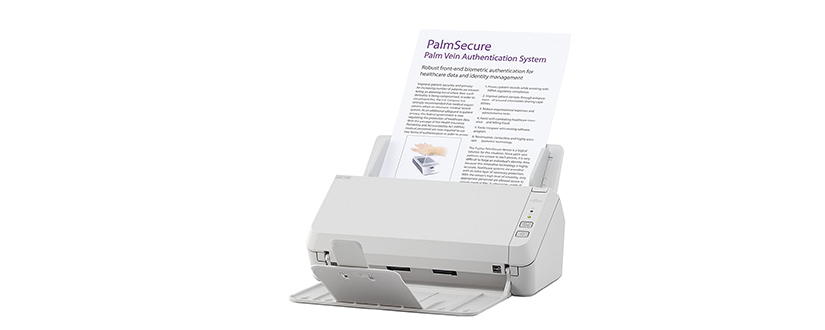

Basic models for professional dolmen management. Scan speeds are 20/25/30 page / min, 40/50/60 image / min, Color, Greyscale, Mono, single sided / duplex scanning, A8-A4 format, ADF unit accepts 50 sheets of standard paper, continuous scanning, USB 2.0 connection. The following software packages are delivered with the scanner: PaperStream IP driver (TWAIN & ISIS), Software Operation Panel, Error Recovery Guide, Presto PageManager, ABBYY Fine Reader Sprint, Central Admin Agent Scanner. A typical daily scanning range of up to 3,000 pages.
Specification
|
SP 1130
|
|
Supported operating systems
|
Windows® 10 (32-bit / 64-bit), Windows® 8 / 8.1 (32-bit / 64-bit), Windows® 7 (32-bit / 64-bit), Windows Vista® (32-bit / 64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (32-bit / 64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit / 64-bit)
|
|
Scanner Type
|
ADF (Automatic Document Feeder)
|
|
Scanning modes
|
Simplex / Duplex, Color / Grayscale / Monochrome
|
|
Image Sensor Type
|
Single line CMOS-CIS x 2 (Front x 1, Back x 1)
|
|
Light Source
|
R, G, B LED x 2 (Front x 1, Back x 1)
|
|
Document size
|
Maximum: A4 Portrait (210 x 297 mm) or Legal (8.5 x 14 in.) or 8.5 x 34 in. (215.9 x 863.6 mm) (long page scanning: 3,048 mm (120 in.))
Minimum: A8 Portrait / Landscape (52 x 74 mm)
|
|
Paper weight
(Thickness)
|
Paper
|
50 to 209 g/m2 (0.06 to 0.26 mm)
* A8 size: 127 to 209 g/m2 (0.15 to 0.26 mm)
|
|
Plastic Card
|
ISO7810 ID-1 type compliant (0.76 mm or less, embossed plastic cards with total thickness of 1.24 mm or less)
|
|
Scanning speed
(A4, Portrait) (1)
|
Color (2)
|
Simplex: 30 ppm (200 dpi / 300 dpi)
Duplex: 60 ipm (200 dpi / 300 dpi)
|
|
Grayscale (2)
|
|
Monochrome
|
|
Paper chute capacity (A4 Landscape) (3)
|
50 sheets (A4: 80 g/m2 or 20 lb)
|
|
Expected daily volume
|
3,000 sheets/day
|
|
Background colors
|
White (Hardware, scanned background is gray)
|
|
Optical Resolution
|
600 dpi
|
|
Output Resolution (4)
|
Color (24-bit)
|
50 dpi to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver) (5)
|
|
Grayscale (8-bit)
|
|
Monochrome (1-bit)
|
|
Output format
|
Color: 24-bit, Grayscale: 8-bit, Monochrome:1-bit
|
|
Internal video processing
|
65,536 levels (16-bit)
|
|
Interface
|
USB2.0
|
|
Connector shape
|
B type
|
|
Image processing function
|
Auto color detection, Automatic page size detection, De-Skew, Multi-image, Blank page skip, Error diffusion, Dropout color (R, G, B, Saturation), Image emphasis, Advanced DTC, sRGB, Halftone, Smoothing, Split image, Vertical streaks reduction, Digital endorser, Edge correction, Dynamic threshold(iDTC)
|
|
Power requirement
|
AC 100 V to 240 V ± 10%
|
|
Power consumption
|
Operating: 18 W or less
Sleep mode: 1.6 W or less
Auto standby (OFF) mode: 0.4 W or less
|
|
Operating environment
|
Temperature: 5 to 35 °C (41 to 95 °F)
Relative humidity: 20 to 80% (Non-condensing)
|
|
Dimensions: Width x Depth x Height (6)
|
298 mm x 135 mm x 133 mm (11.7 in. x 5.3 in. x 5.2 in.)
|
|
Weight
|
2.5 kg
|
|
Included software / drivers
|
PaperStream IP (TWAIN / TWAIN x64 / ISIS) for SP Series (7), PaperStream Capture Lite(9), Software Operation Panel, Error Recovery Guide, Presto!™ PageManager™, ABBYY™ FineReader™ Sprint, Scanner Central Admin Agent
|
|
Environmental compliance
|
ENERGY STAR® and RoHS
|
|
Others
|
Multifeed detection
|
Yes (Standard) ultrasonic multifeed detection sensor x 1
|
|
Long page scanning (8)
|
3,048 mm (120 in.)
|
|
Included items
|
AC adapter, USB cable, Setup DVD-ROM
|
|
